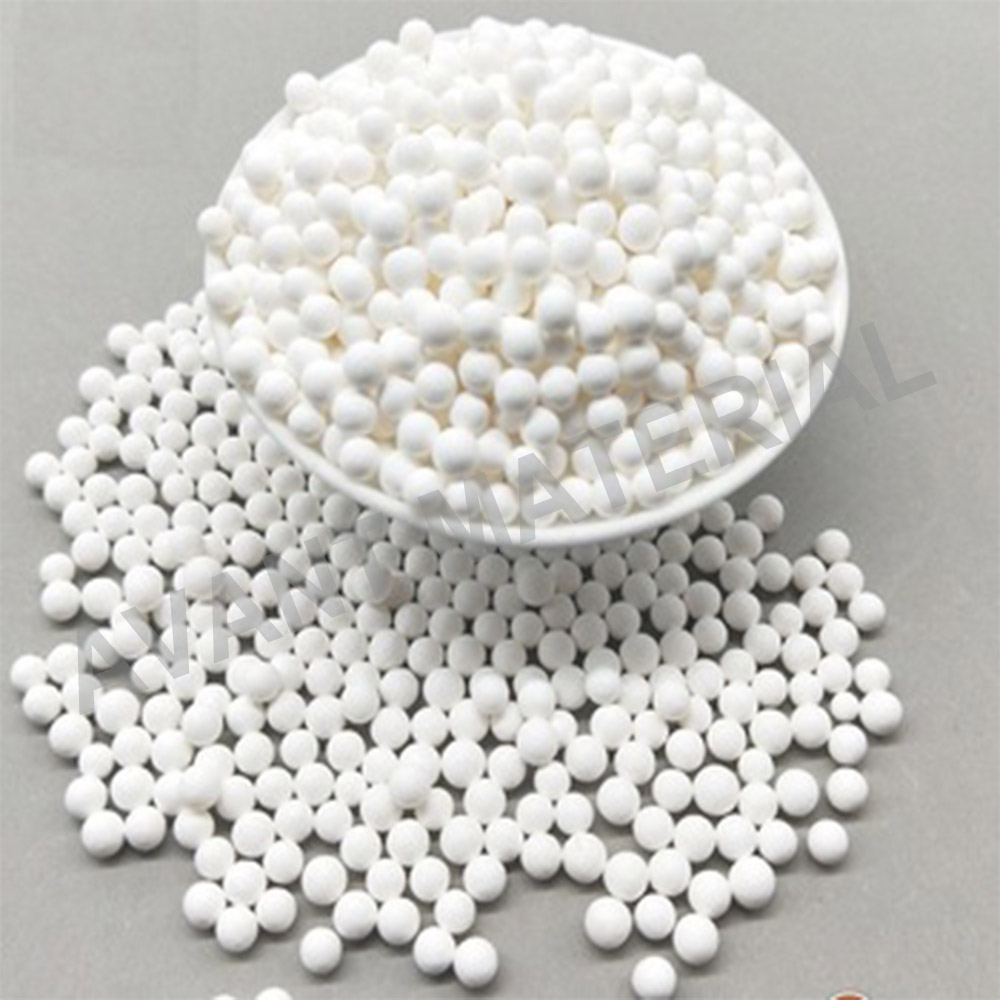

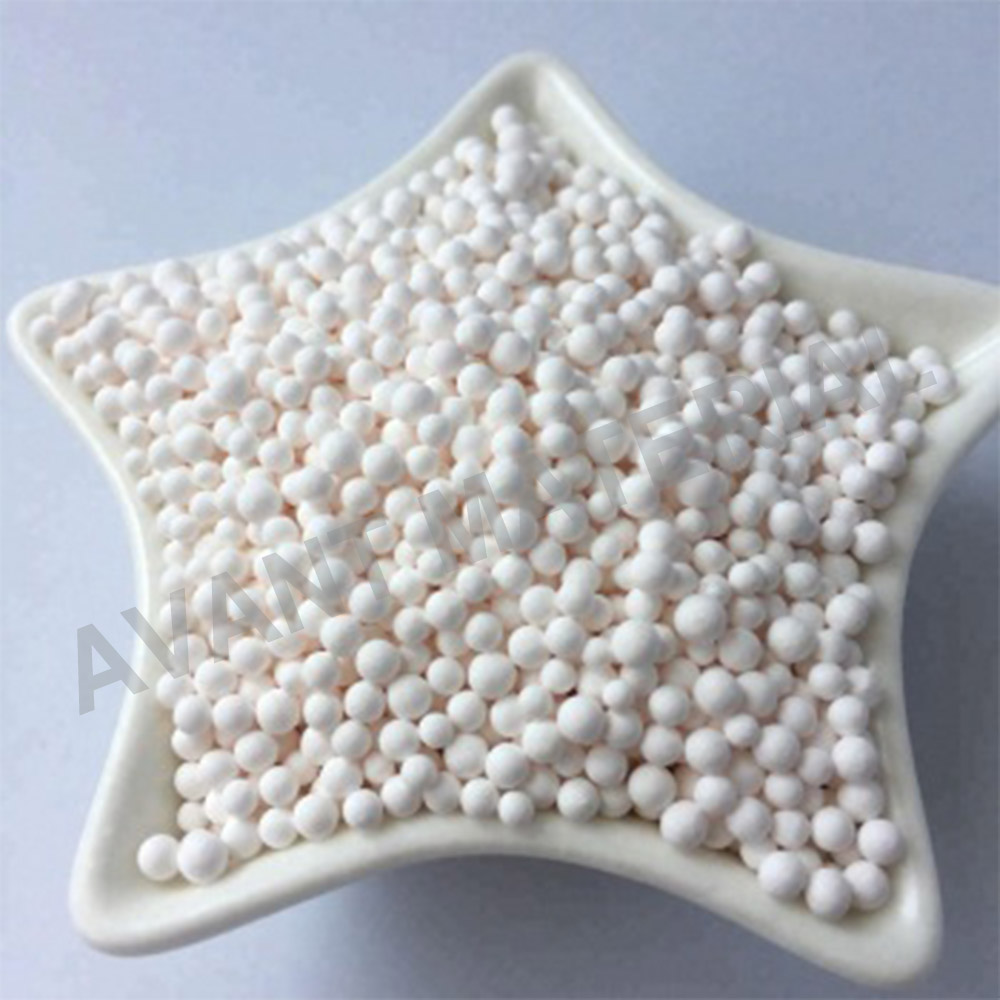

Platinum catalyst carrier activated alumina sphere is activated alumina white spherical particle made of advanced molding technology with platinum catalyst support.Catalyst carrier has the characteristics of stable specific surface area, good compressive strength, low abrasion, suitable pore structure, low impurity content, and good impregnation characteristics of active components.
Platinum catalyst carrier activated alumina sphere is produced by high-activity aluminum hydroxide as raw material, adding special ingredients, and undergoing quick release process. This product is white porous granules. Platinum catalyst carrier activated alumina sphere adopts advanced molding technology, suitable pore structure, low impurity content, and good active component impregnation characteristics. The particle size, specific surface area, bulk density and crushing strength can be adjusted according to customer requirements.
Activated alumina white spherical particles made of advanced molding technology with platinum catalyst support, which have the characteristics of stable specific surface area, good compressive strength, low abrasion, suitable pore structure, low impurity content, and good impregnation characteristics of active components.
Application of platinum catalyst carrier activated alumina sphere
1. CCR /Continuous reforming catalyst (equivalent to Sasol and UOP catalyst carriers),
2. Alkylation Catalyst,
3. Nickel-based catalyst,
4. Precious metal catalyst,
5. Chromium-based catalyst,
6. Propane dehydrogenation catalyst and so on
Preparation methods: such as oil dropping method, nitric acid method and activation method etc.
Shandong Avant New Material Technology CO., LTD Catalyst Carrier Technical Data Sheet
| ||||||||||
Series | Specification (mm) |
Al₂O₃% |
SiO₂% |
Fe₂O₃% |
Na₂O % | Bulk Density (g/ml) | Surface Area (m²/g) | Pore volume (ml/g) | Crushing Strength (N/Granule) | |
Precious metal catalyst carrier |
AM-PMS |
φ2.5-3.8 |
≥92 |
≤0.10 |
≤0.04 | ≤0.10 (MAX:≤0.40) |
0.5-0.7 |
≥200 |
≥0.42 |
≥50 |
φ2-4 |
≥92 |
≤0.10 |
≤0.04 | ≤0.10 (MAX:≤0.40) |
0.5-0.7 |
≥200 |
≥0.42 |
≥60 | ||
Thin-shell type AL₂O₃ supported Pt-Pd double noble metal catalyst |
AVANT CC-00 |
2-3mm |
≥92 |
≤0.10 |
≤0.04 |
≤0.45 |
≤0.70 |
≥200 |
20.40 |
≥30 |
Precious metal catalyst carrier |
AM- PMS-B | φ3-5 | ≥92 | ≤0.10 | ≤0.04 | ≤0.1 | ≤1.0 | ≥200 | ≥0.42 | ≥50 |
φ2.5-3.8 | ≥92 | ≤0.10 | ≤0.04 | ≤0.40 | 0.5-0.7 | ≥200 | ≥0.42 | ≥50 | ||
φ2-4 | ≥92 | ≤0.10 | ≤0.04 | ≤0.40 | 0.5-0.7 | ≥200 | ≥0.45 | ≥60 | ||
