Protectant for Sulfur Tolerant Shift Catalysts to remove impurities

1)Suitable for sulfur tolerant shift process in which the gases are generated by coal gasification process.

2)Removing and absorbing impurities or poisons such as carbon black and tar in the feed gas, and protecting sulfur tolerant shift catalysts.

Inquire Now Next Product

Product introduction

1) The new preparation technique makes the protectants have reasonable pore structure, the removing and absorbing impurities or poisons such as carbon black and tar in the feeds gas with high capture capacity.

2) High mechanical strength and high erosion resistance.

Product Basic Info

Operating Conditions:

Temperature/℃	180~500
Pressure/MPa	1.0~8.0
Space Velocity(dry based)/h^-1	≤10000

Product Specification

Item	AMC-BH-02	AMC-BH-02Q	AMC-BH-04

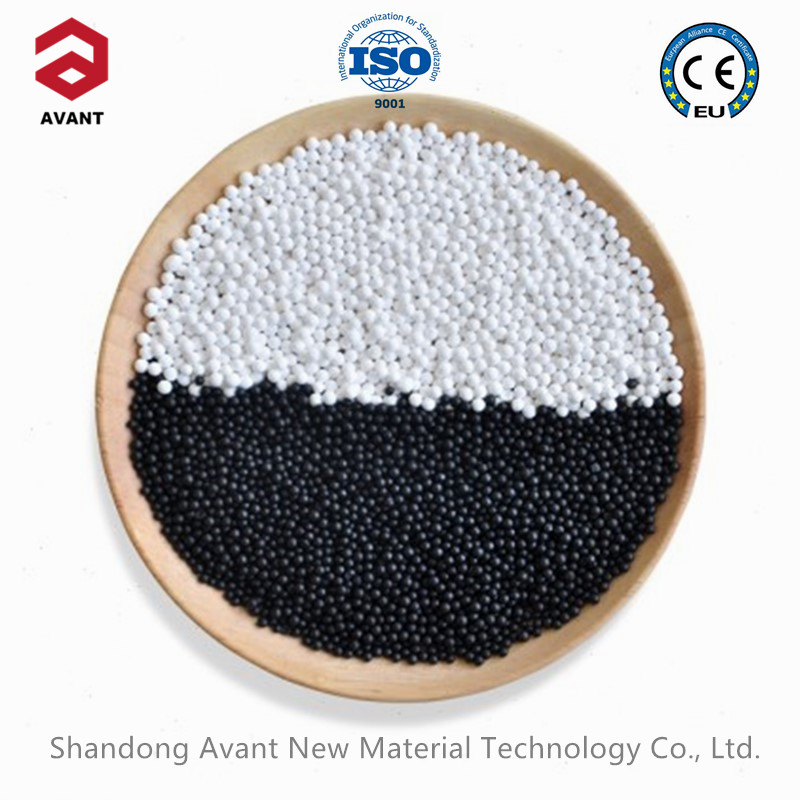

Color and shape	White extrudate	White sphere	White multihole cylinder
Size/mm	Φ3.5~4.0	Φ4.0~6.0	Φ16×16
Bulk density/(kg·L^-1)	0.70~0.80	0.70~0.80	0.85~1.00
Crushing strength	≥120(N·cm^-1)	≥80(N·granula^-1)	≥160(N·granula^-1)
Main components	MgO/Al2O3	MgO/Al2O3	Al2O3
