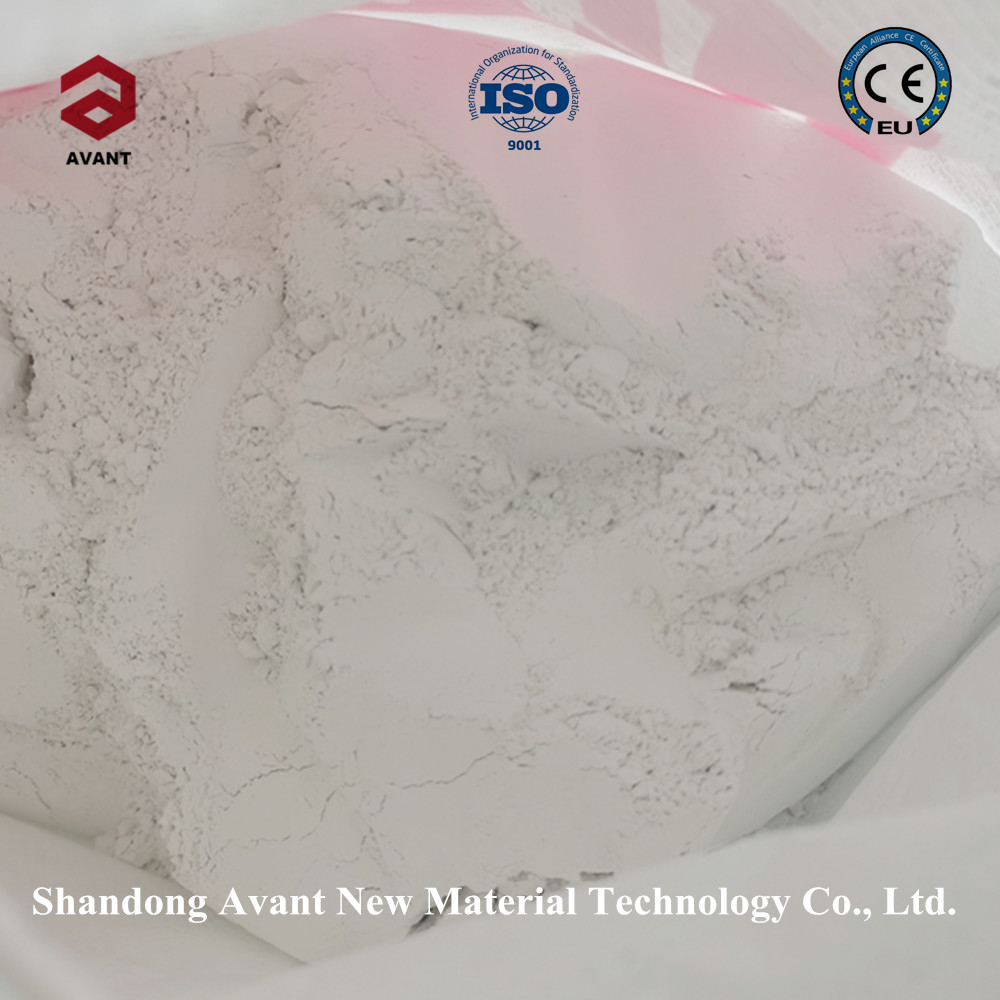

White Fused Alumina is made of high-quality alumina powder as raw material,which is refined and crystallized by electrofusion.
The characteristic of white fused alumina:
1.Its hardness is slightly higher than that of brown fused alumina,
2.its toughness is slightly lower.
3.High purity,
4.Good self-sharpening,
5.Strong grinding ability,
6.Low calorific value,
7.High efficiency,
8.Acid and alkali corrosion resistance,
9.High temperature resistance
10.Stable thermal performance
Application:
1. Used to make abrasive tools ,
2.Grinding high-carbon steel,
3.High-speed steel,
4.Stainless steel
5.Other fine-grained abrasives,
6.Precision casting
7.Advanced refractories.
Main Physical Properties:
Mohs Hardness | 9.0 |
Bulk Density | 1.75-1.95g/cm3 |
Real Denstiy | 3.95g/cm3 |
Melting Point | 2250℃ |
Maximum Service Temperature | 1900℃ |
Micro Powder Production Process
1.Semicolon precipitation
2.Vertical ball mill
3.Acid washing tank
4.Overflow tank
5.Hydraulic classification
6.Pressure controller
Grit Production Process
1.Shaking sieve
2.Jaw crusher
3.Ball mill
4.Dust collector
5.Dumping furnace
Chemical Composition(Used for refractory and castable)
Properties Type | 0-1mm,1-3mm,3-5mm | 0-100,0-200,0-320 | |||
Guarantee Value | Typical Value | Guarantee Value | Typical Value | ||
Chemical Composition | Al₂O₃ | ≥99% | 99.50% | ≥98.5% | 99.00% |
Na₂O | ≤0.4% | 0.06% | ≤0.3% | 0.08% | |
Fe₂O₃ | ≤0.2% | 0.04% | ≤0.2% | 0.10% | |
SiO₂ | ≤0.4% | 0.30% | ≤0.4% | 0.35% |
Chemical Composition (Used for abrasive,blasting and grinding)
Properties Type | Grit | ||
8#,10#,12#,14#,16#,20#,22#,24#,30#,36#,40#,46#, 54#,60#,70#,80#,90#,100#,120#,150#,180#,220# | |||
Guarantee Value | Typical Value | ||
Chemical Composition | Al₂O₃ | ≥99% | 99.50% |
Na₂O | ≤0.2% | 0.04% | |
Fe₂O₃ | ≤0.2% | 0.04% | |
SiO₂ | ≤0.3% | 0.23% |
Chemical Composition (Used for abrasive,lapping and polishing)
Properties Type | Micropowder | ||
"W" | W63,W50,W40,W28,W20,W14,W10,W7,W3.5,W2.5 | ||
"FEPA" | F230,F240,F280,F320,F360,F400, F500,F600,F800,F1000,F1500,F2000 | ||
"JIS" | 240#,280#,320#,360#,400#,500#,600#,700#,800#,1000#, 1200#,1500#,2000#,2500#,3000#,4000#,6000#,8000# | ||
Chemical Composition | Al₂O₃ | ≥99% | 99.20% |
Na₂O | ≤0.4% | 0.08% | |
Fe₂O₃ | ≤0.2% | 0.06% | |
SiO₂ | ≤0.4% | 0.35% |
